UnirVec: Joining two or more vector files
Access this help text as a web page: UnirVec
Presentation and options
This application joins two or more MiraMon vector files into a single file without taking any topological consideration. That is why the output structured files are marked as non-topologic files. This way this is a very fast process. On the other hand, the Mosaic application performs a topological structuring of the output file, making the process more robust but slower and requiring more memory.
In addition to joining the binary files containing the coordinates, the main data tables are also joined. The application supports table fields being different in some properties (size and decimals) but is not allowed to be different in others (name and type). The number of fields needs to be the same for all tables to be joined.
At the moment the metadata generated corresponds mostly to the first file.
The union of polygons is possible but it must be done from the union of cyclized arches. For more details on polygon names destination the syntax below can be consulted.
The application has two options:
Joining a VEC list:
This option joins two or more MiraMon vector files from a file that contains a list of the files to be joined.
Joining a sequence of VEC files:
This option joins two or more MiraMon vector files from a sequence of filenames in command line.
Joining a sequence of ARC, PNT or cycled ARC files:
This option joins two or more MiraMon vector files from a sequence of file names on the command line.

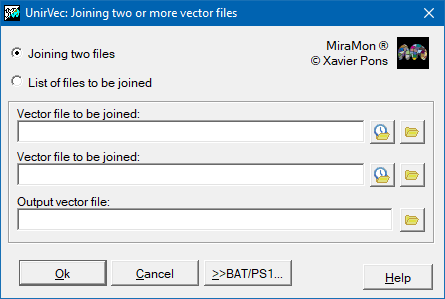

Dialog box of the application

Syntax
Syntax:
- UnirVec 1 Output_File ListOrigin
- UnirVec 1 Output_File Origin1 Origin2 [Origin3]
- UnirVec 2 Output_File ListOrigin [/PREFIX_ORI] [/SUFIX_ORI] [/PREFIX_DESTI] [/SUFIX_DESTI]
- UnirVec 2 Output_File Origin1 Origin2 [Origin3] [/PREFIX_ORI] [/SUFIX_ORI] [/PREFIX_DESTI] [/SUFIX_DESTI]
Options:
- 1:
Joins a list or sequence of VEC files.
- 2:
Joins a list or sequence of cycled ARC, PNT, or ARC files.
- 2:
Joins a list or sequence of cycled ARC, PNT, or ARC files.
Parameters:
- Output_File
(Output_File -
Output parameter): It is the output file of the union of the files.
- ListOrigin
(List origin -
Input parameter): This is a list file (usually txt or lst) that contains a list of files to join.
- Origin1
(Origin1 -
Input parameter): First file of a sequence of file names. This option is especially useful to join 2 or 3 files on the command line without having to generate a list. The application dialog box does not reflect this option.
- Origin2
(Origin2 -
Input parameter): Second file of a sequence of file names. This option is especially useful to join 2 or 3 files on the command line without having to generate a list. The application dialog box does not reflect this option.
- Origin3
(Origin3 -
Input parameter): Third file of a sequence of file names. This option is especially useful to join 2 or 3 files on the command line without having to generate a list. The application dialog box does not reflect this option.
Modifiers:
/PREFIX_ORI (PREFIX_ORI) Given that the number of cycles on an arc may be greater than 1, the name of the polygon files is built from a manipulation of the origin polygon files. Thus, the program looks for 'PREFIX_ORI' (and 'SUFIX_ORI') in the original name and replaces them with 'PREFIX_DESTI' and 'SUFIX_DESTI'. The destination directory is the same as the directory of the destination arcs file. (Input parameter) /SUFIX_ORI (SUFIX_ORI) Given that the number of cycles on an arc may be greater than 1, the name of the polygon files is built from a manipulation of the origin polygon files. Thus, the program looks for 'SUFIX_ORI' (and 'PREFIX_ORI') in the original name and replaces them with 'PREFIX_DESTI' and 'SUFIX_DESTI'. The destination directory is the same as the directory of the destination arcs file. (Input parameter) /PREFIX_DESTI (PREFIX_DESTI) Given that the number of cycles on an arc may be greater than 1, the name of the polygon files is built from a manipulation of the origin polygon files. Thus, the program looks for 'PREFIX_ORI' and 'SUFIX_ORI' in the original name and replaces them with 'PREFIX_DESTI' (and 'SUFIX_DESTI'). The destination directory is the same as the directory of the destination arcs file. (Input parameter) /SUFIX_DESTI (SUFIX_DESTI) Given that the number of cycles on an arc may be greater than 1, the name of the polygon files is built from a manipulation of the origin polygon files. Thus, the program looks for 'PREFIX_ORI' and 'SUFIX_ORI' in the original name and replaces them with 'SUFIX_DESTI' (and 'PREFIX_DESTI'). The destination directory is the same as the directory of the destination arcs file. (Input parameter)
