KEYWORDS: Remote Sensing, MSS, NDVI, fire scars mapping, plant regeneration, fire regimes.
Due to the lack of precise mapping of boundaries of fires occurring in many areas, remote sensing has been widely applied to obtain them. Once this information has been achieved, fire regimes and the regeneration of plant communities have been analyzed in many regions of the world.
Time series of images are currently used to monitor -through NDVI values- the regeneration process followed by plant communities after forest fires. Regeneration ratios of different plant communities are compared and the effect of other environmental factors on such a process is also studied. Finally, spatial patterns of fire sizes have been also analyzed.
Images had to be geometrically corrected and properly registered in order to be used in a time series analysis. The correction model of Palà and Pons (1995), based on polynomials was applied to a group of control points over the whole set of images.
Standard gain and offset coefficients for each satellite and period were applied in order to transform digital numbers to radiance levels. Next, the radiometric correction model of Pons and Sole-Sugranyes (1994) was applied to obtain reflectances, which may allow comparisons between images from different times of the year. A final normalization of the different bands by means of invariant training areas was required. Once all images were normalized, NDVI values were calculated from bands 2 and 4 of the MSS sensor.
Subtraction of NDVI values between consecutive images was chosen as method for its simplicity and robustness. Crops, clouds and freshwaters [7] together with deciduous forests, yield also a sudden drop in NDVI values between subsequent images. In order to avoid confusions between these surfaces and burned areas
a set of masks were created and applied to the series of images. Once masks had been applied and consecutive date images subtracted, a threshold was determined by visually seeking the value that yielded best results for 21 previously located fires. Figure 1 shows the three different regression models that were used to build the 2 methods proposed. For further details on these methods
see Salvador et al. [8].
Data Integration and Fire Regime Analysis
Once applied the semiautomatic method, results were validated by using the administration inventories for the period 1983-93, provided by the DARP [3]. Omission and commission errors were given and possible causes of confusion
argued. Then, the fire-scars were integrated into a database GIS in a topologically structured vector format in order to consult several environmental and spatial parameters inherent to each fire (Figure 3). Such an information have been extracted to study the fire regime in Catalonia (extent, recurrence, intensity and seasonality of burns). Table 1 and 2 show some statistical information taken from field surveys of fire events occurred in the analyzed
period in Catalonia and also from those obtained from the methodology
described in Salvador et al.[2]
Spatial patterns of fire sizes have been also analysed and temporal patterns of burns are currently under study.
Plant Regeneration Monitoring
In order to examine the variability of the vegetation responses to fire, the results were also employed to locate fire scars and to select from them several burned areas to monitor their regeneration processes . This variability is
evaluated from rates of recovery after fire in different Mediterranean plant communities located in several areas of Catalonia. In this part of the study we attempted to fit regression models on the dynamics of the regeneration processes -monitored by the NDVI response- and to analyze the influence of several environmental parameters on such dynamics [1].
Table 1: Fire statistics of Catalonia during the 1975-93 period obtained from administration inventories. Sources : Departament d'Agricultura, Ramaderia i Pesca (DARP) and Instituto para la Conservación de la Naturaleza (ICONA).
Table 2: Frequency values and surfaces affected by fire recurrence, extracted from the map series of fire history of Catalonia (period 1975-93). Source : Salvador et al., 1997.
In addition to the error arising from real fires not being detected, the accuracy should also be quantified in terms of the error arising from mapped areas which were not really burned patches (commission error). Figure 2 shows for both methods the proportions of discriminated areas that corresponded to real fires. In this case, unlike the omission error, considering all the fires greater or equal than 30 ha, the accuracy of method A (91.08 %) was quite superior to that of method B (75.73 %).
Some preliminary results about characterising fire spatial patterns showed that the 80% of the total area burned in Catalonia comes from small fires.
Monitoring of plant regeneration after fire in different burned areas yielded a good technical approach to compare previous and post-fire NDVI values by using the NDVI quotient between burned areas and control sites (see figure 4). For further details on results see Díaz-Delgado et al., 1998.
Satellite images have a considerable value for mapping burned areas. Knowledge about these areas can aid understanding of the structure and dynamics of the vegetated landscape. Furthermore, there is global interest in monitoring fire regimes. Despite technical problems due to its age, images from the MSS sensor are particularly useful for the task of fire
mapping.
The linear models developed in this analysis, even though based on a simple method such as NDVI subtraction, have produced quite acceptable results. The level of accuracy clearly increased with the area burnt in fires, taking
into account all the burnt areas equal or greater than 30 ha.
A range of factors must be acknowledged as possible causes of the observed imprecision in the results of this work. Many of them can be minimized in future analysis. Increasing temporal resolution can considerably reduce the effect
of phenology and the time lag between fire and image recording. The vegetation density prior to fire can be considered in future works, by means of the use of mean NDVI values for the area analyzed. Other factors, however, can not be controlled, for example the different fire intensities, soil response in sparse shrub-covered zones and clearing activities.
Concerning to the plant regeneration monitoring we want to point out the interest of employing the previous interval of variation in similar approaches (see figure 4): this range may be used as a reference to determine the maximum
expected level of plant recovery to be attained in the first recovery
process.
Figure. 1: Intervals of NDVI variations through time and the differences between consecutive images for the 21 real fires employed. Graphic also shows the regression models adjusted to the minimum and maximum values that were employed to discriminate the fire-scars according to the 2 methods.

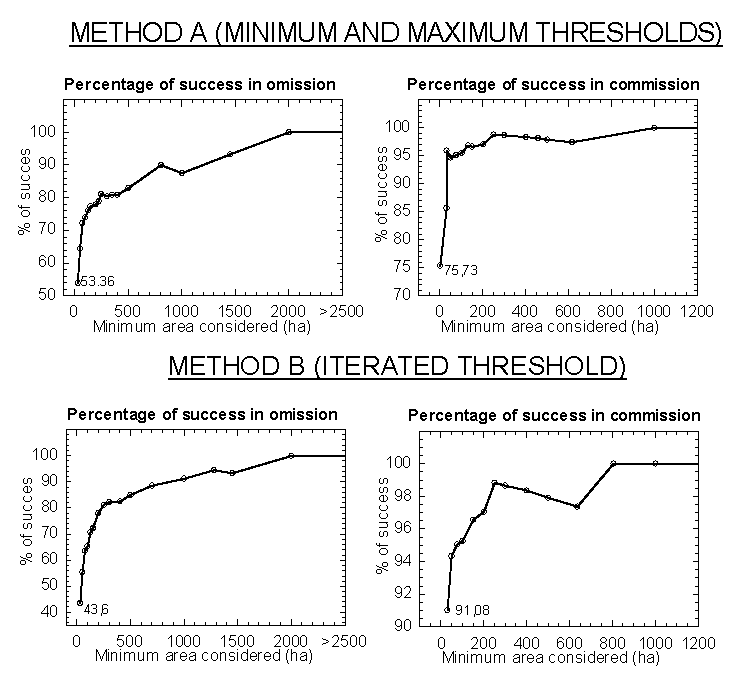

Figure. 2: Graphics show the percentages of omission and commission errors for both methods and their variation according to the increasing size (minimum area considered).

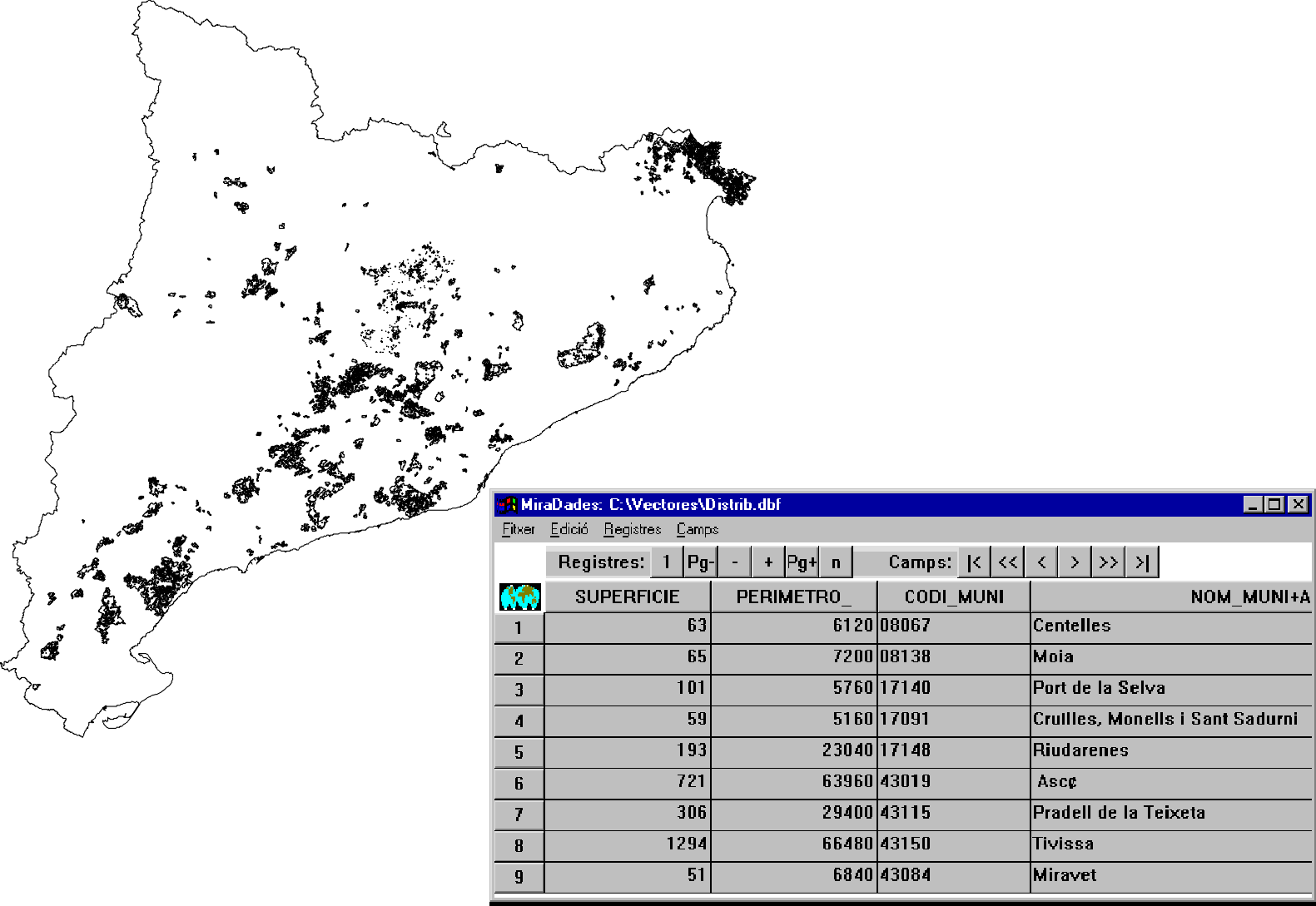

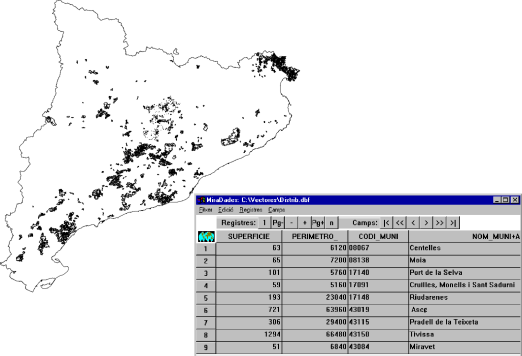

Figure 3: The map shows the Catalonia region and all the fire-scars detected with method B. Different fire parameters can be consulted by means of Miradades and Miramon software as an integrated GIS database.

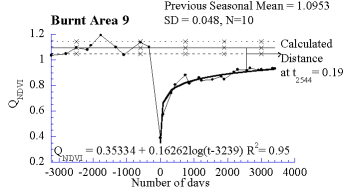

Figure 4: Evolution of NDVI quotient (QNDVI) between burnt area and control area before and after the Maresme fire in 1983. Chart also show
the adjusted logarithmic model and the distance to pre-fire NDVI values in time t=2544 days in order to compare all the burned zones.

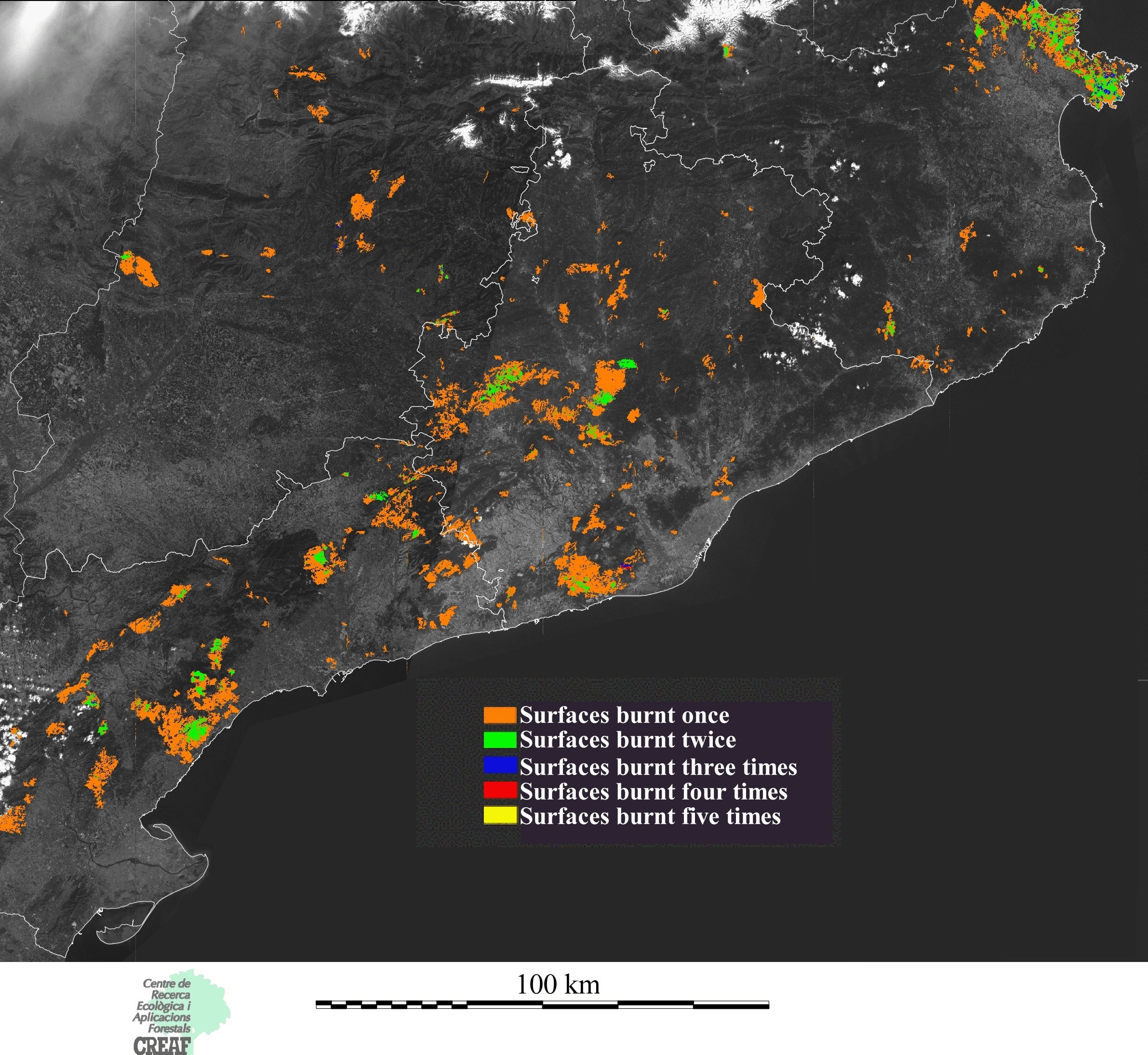

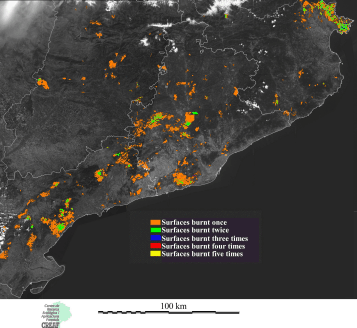

Figure 5: Map of burnt forested areas and frequency of wildfires in Catalonia during the period 1975-1993. Method of the maximum and minimum thresholds.
